Hybride Implanteerbare poorten
Polysite echo
Beschrijving
Adult venous implantable port with peelable introducer (7Fr, 8Fr or 9Fr) and CIV-Flex Echoset. Two types of implantable port existing: … Lees meer
Indicatie
POLYSITE implantable ports allow repeated and prolonged access to the venous system.
POLYSITE implantable ports are used to administer chemotherapy, antibiotics and antiviral drugs. They can also be used for parenteral nutrition, collection of blood samples and transfusion of blood or blood products. All POLYSITE references can be used for pressure injection of contrast media during CT procedures (compatible with high pressure injectors, cf IFU Chap. USE AND MAINTENANCE part. INJECTION OF CONTRAST MEDIA DURING CT SCAN PROCEDURES).
The POLYSITE ECHO placement kits are used in the same indications and consist of instrumentation suitable for placement of implantable ports by echo-guided puncture (see chap. INSERTION TECHNIQUES).
Beschrijving

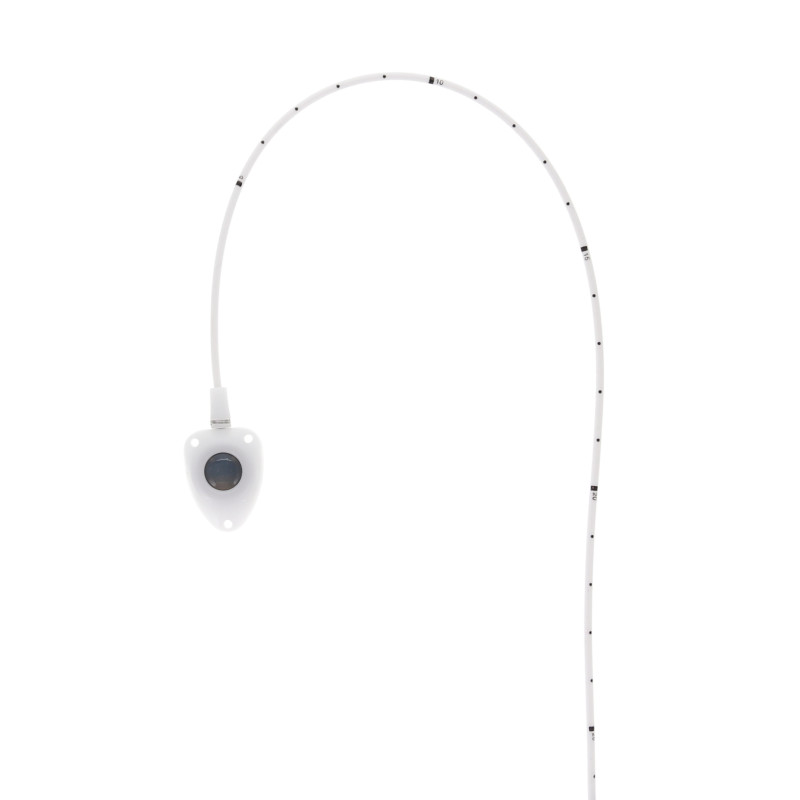

Adult venous implantable port with peelable introducer (7Fr, 8Fr or 9Fr) and CIV-Flex Echoset.Two types of implantable port existing:
- Standard implantable port with catheter to connect in silicone (code VPE4008ECHO) or in polyurethane (codes VPE4017ECHO and VPE4019ECHO).
- Standard implantable port with a pre-connected catheter in silicone (code VPE4108ECHO).
1 - A pouch containing:
- One titanium and POM (polyoxymethylene) standard port with a silicone septum,
- One 60cm XRO silicone or polyurethane catheter. Graduation every cm with a numbered marking every 5cm from 5 to 40cm,
- Two connection rings (only one for pre-connected references) with a Phynox thread containing nickel,
- One straight Huber needle - 22G,
- One vein pick,
- For all non pre-connected references, one flushing connector preconnected to the catheter except for code VPE4019ECHO,
- One peelable introducer - 17cm,
- One 10ml syringe,
- One Raulerson metallic guidewire introducer,
- One J guidewire with thumbfeed J straightener graduated every 10cm (0.035’’– 60mm),
- One echogenous puncture needle - 18G - 70mm useable length,
- One tunneler Ø 2.5mm, length: 23cm.
- One latex-free guidance probe sheath 14 x 147cm,
- One sterile ultrasound gel pouch,
- Two supporting elastic straps for the protective cover,
- One sterile drape.
Referenties en specificaties
| Implantable port | Catheter | Introducer | Verpakking | |||
|---|---|---|---|---|---|---|
| Favourites | Code | Prim. vol. ml | Ext. Ø mm | Diameter Fr | Eenheden/Doos | Eenheden/pakket |
| 2007 ECHO | 0.2 | - | 7 | 1 | 1 | |
| 2016 ECHO | 0.2 | - | 6 | 1 | 1 | |
| 3007 ECHO | 0.35 | - | 7 | 1 | 1 | |
| 3008 ECHO | 0.35 | - | 8 | 1 | 1 | |
| 3017 ECHO | 0.35 | - | 7 | 1 | 1 | |
| 3107 ECHO | 0.35 | - | 7 | 1 | 1 | |
| 3108 ECHO | 0.35 | - | 8 | 1 | 1 | |
| 4008 ECHO | 0.55 | - | 8 | 1 | 1 | |
| 4017 ECHO | 0.55 | - | 7 | 1 | 1 | |
Aanvullende informatie
-
Aanwezigheid van latex Nee
-
Aanwezigheid van producten van dierlijke of biologische oorsprong Nee
-
Pyrogeenvrij Ja
