Nerve stimulator
Plexygon
Description
Electro-neuro-stimulator for plexus and peripheral nerve blocks. Designed for optimum performance in terms of efficiency, safety and ease of use… Read more
Indication
Electro-neuro-stimulator for plexus and peripheral nerve blocks in upper limb or lower limb surgery.
Description

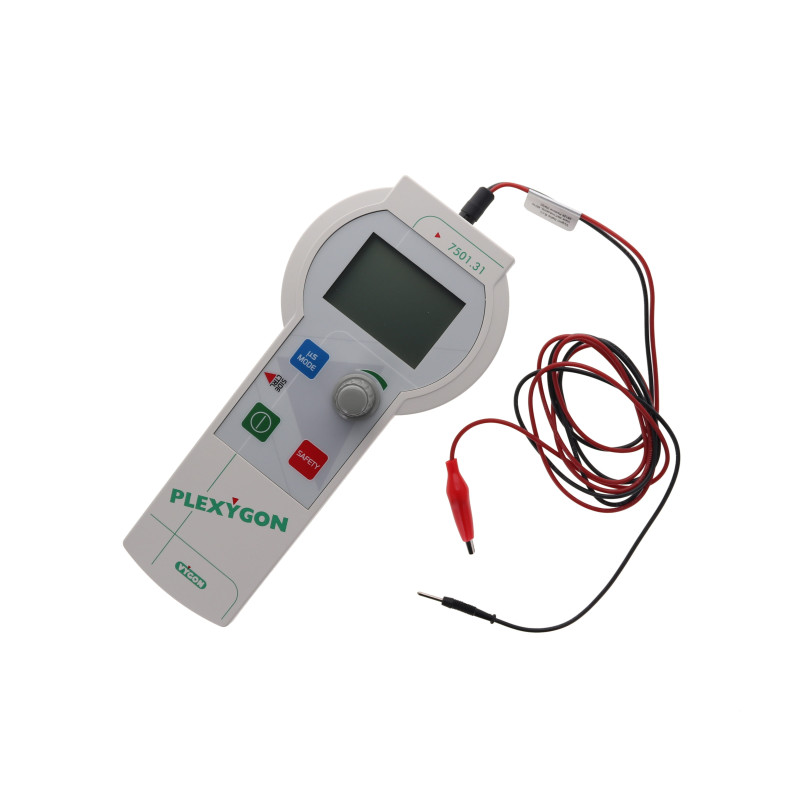

Electro-neuro-stimulator for plexus and peripheral nerve blocks.Designed for optimum performance in terms of efficiency, safety and ease of use.
Allows quick and easy identification of nerves:
- Large LCD screen
- Adjustable impulse generator:
. 0 to 5 mA for an impulse of 100 µs
. 0 to 6 mA for an impulse of 50 µs
- Adjustable impulse frequency (1, 2 or 4 Hz) and duration (300 µs, 100 µs or 50µs)
- Choice of display units: mA or nC
- "Safety" button immediately cuts off the electric current
- Precision: the double decimal digit display is automatically activated below 0.5 mA, by increments of 0.02 mA
- Plexygon can be used under sterile conditions with a protective hood, supplied separately as a single unit (code 39.00.15)
- Dimensions: Length 200 mm / Width: max. 93 mm – min. 57 mm Height: max. 40 mm – min. 23 mm / Weight: 205 g
- Battery life: over 24 hours continuous operation (battery 9 V – 500 mAh)

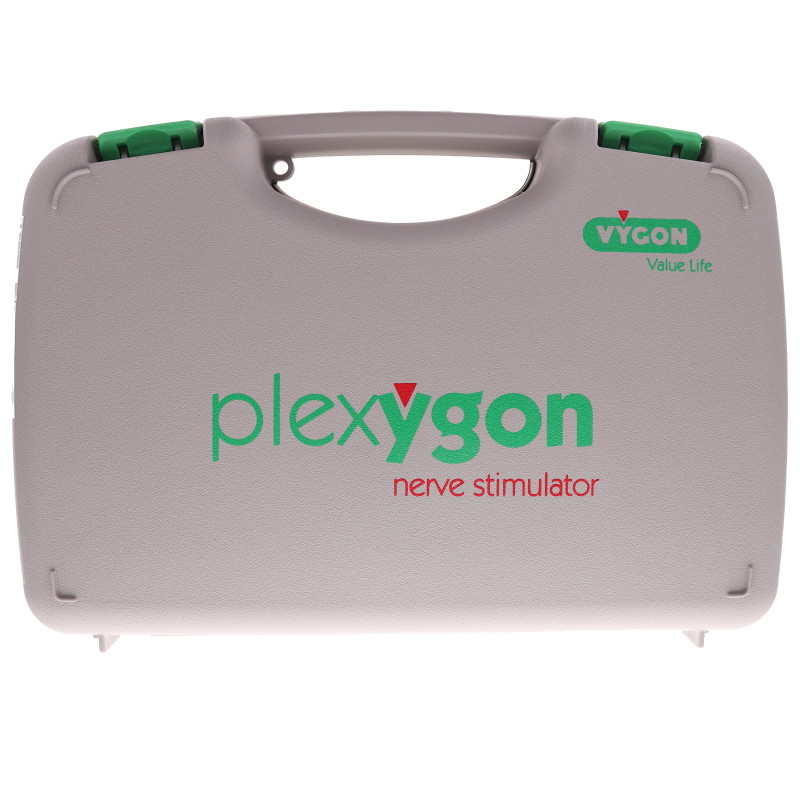

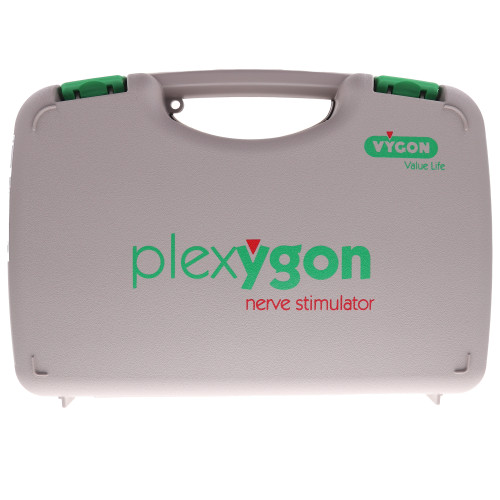

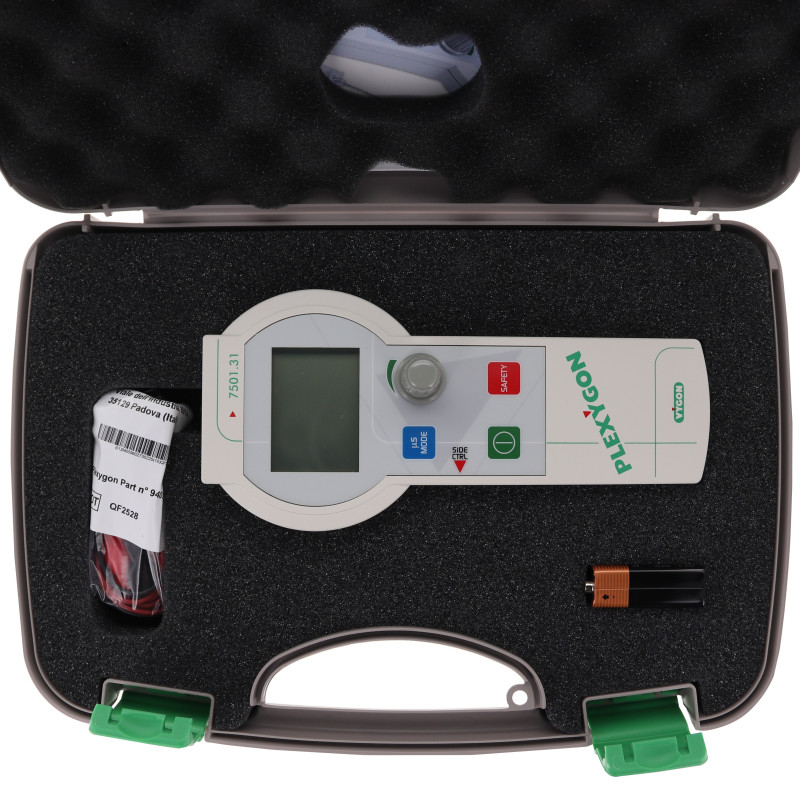

- Supplied in a small case for storage and transport
- Conforms to IEC standards 6011 and 601210.
References and Features
| Plexygon | Packaging | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Favourites | Code | Pulse frequency Hz | Pulse width µs | Variation of intensity from 0.5 and above by increments of mA mA | Variation of intensity from 0.0 to 0.5 mA by increments of mA mA | Maximum possible intensity at 50µs mA | Maximum possible intensity at 100µs mA | Maximum intensity at 300µs mA | Units/Box | Units/Case |
| 7501.31 | 1, 2, 4 | 50, 100, 300 | 0.1 | 0.02 | 6 | 5 | 4 | 1 | 10 | |
Additional information
-
Contains Latex No
-
Contains animal product No
-
Pyrogen-free No
Documentation
-
Catalogue Pain Management
-
Instructions for use
