Epidural anaesthesia: Basic sets
Gold Edition
Description
Set for epidural anesthesia containing: 2 Foam sticks small 6’’ 1 2.5ml LS syringe 1 Filter needle 18G 1.5’’ 5 Swabs 7… Read more
Indication
Epidural anaesthesia / analgesia
Description

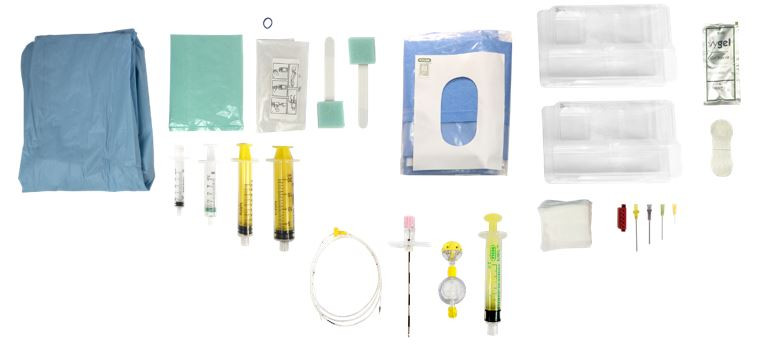

Set for epidural anesthesia containing:- 2 Foam sticks small 6’’
- 1 2.5ml LS syringe
- 1 Filter needle 18G 1.5’’
- 5 Swabs 7.5 x 7.5cm, 8 ply
- 1 Outer wrap 100x120cm
- 1 Grip-Lok for regional anaesthesia
- 1 5ml LS syringe
- 1 Peelable drape 100x80cm with adhesive aperture 6.5x12cm
- 1 VYgel - ultrasound gel 20ml
- 1 Device for safety needle securement – 5 needles
- 1 Probe cover 15x120cm and rubber band
- 1 NRFit 20ml lock syringe
- 1 NRFit 10ml lock syringe
- 1 NRFit filter needle G18 50mm
- 1 Upper tray 21x13x3.5cm
- 1 Lower tray 20.6x13x4cm
- 1 Hypodermic needle 21G 1’’1/2 green
- 1 Hypodermic needle 25G 5/8’’ orange
- 1 NRFit Tuohy needle 17G - 90mm long. with plastic transparent hub and removable wings - Metallic stylet. The needle has graduations every centimeter. The transparent hub allows to quickly visualize an accidental reflux of blood or of CSF.
- 1 Transparent polyurethane catheter with radiopaque line, 19G, soft tube, 90cm long. with closed distal end with 3 lateral eyes. The catheter has markings every centimeter from 5 to 20 cm and a black mark at the distal end to ensure that the entire catheter has been withdrawn.
- 1 Catheter guide which connects onto the Tuohy needle to facilitate the insertion of the catheter in the epidural space.
- 1 NRFit connector "Nexus" type with pre-mounted filter 0.2 micrometer. Filter surface area: 5.25cm², priming volume: 0.3ml, pressure resistance: 5.2 bar.
- 1 Male cap
- 1 NRFit "low resistance" plastic syringe 10ml
- 1 Yellow label 5x2cm epidural identification
References and Features
Syringe | Needle | Catheter | Packaging | |||||||
---|---|---|---|---|---|---|---|---|---|---|
Favourites | Code | Volume ml | Gauge G | Length mm | Int. Ø mm | Ext. Ø mm | Length mm | Gauge G | Units/Box | Units/Case |
V05776903 | 10 | 17 | 90 | 0.5 | 1 | 900 | 19 | 6 | 6 | |
V05776904 | 10 | 17 | 90 | 0.52 | 1 | 900 | 19 | 6 | 6 | |
V05776905 | 10 | 18 | 80 | 0.43 | 0.8 | 900 | 20 | 6 | 6 | |
V05776906 | 10 | 18 | 80 | 0.43 | 0.8 | 900 | 20 | 6 | 6 |
Additional information
-
Contains Latex No
-
Contains animal product No
-
Pyrogen-free Yes
Documentation
-
Catalogue Pain Management
-
Instructions for use
