Invasive ventilation
Endotracheal tube - standard transparent tube
Description
Plain endotracheal tube (without cuff) made of: a PVC transparent tube with radiopaque line. The distal end is bevelled to 38°. They have a… Read more
Indication
Endotracheal intubation of neonates, babies and infants.
Description

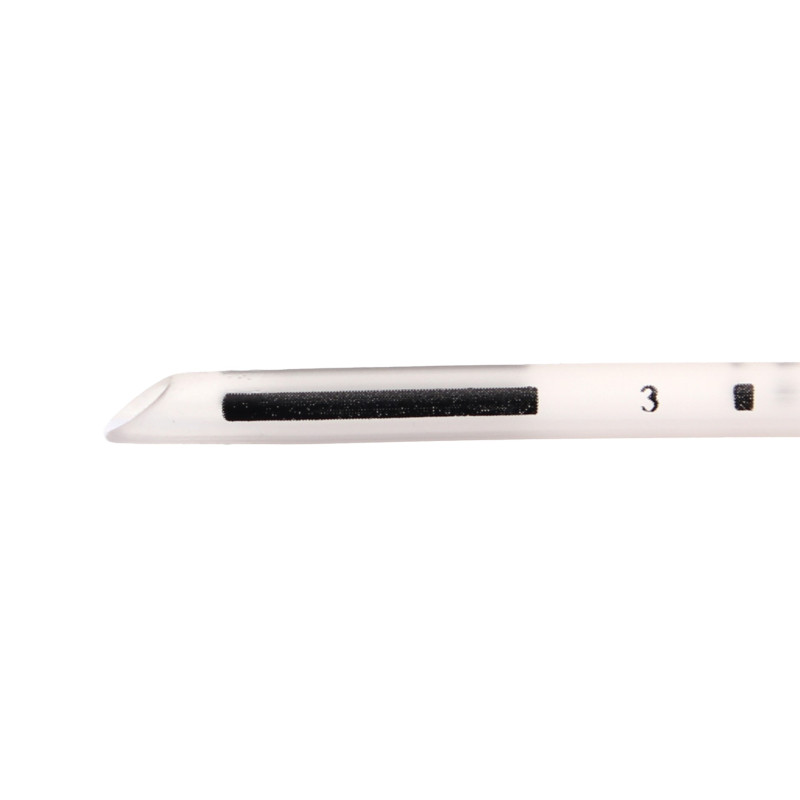

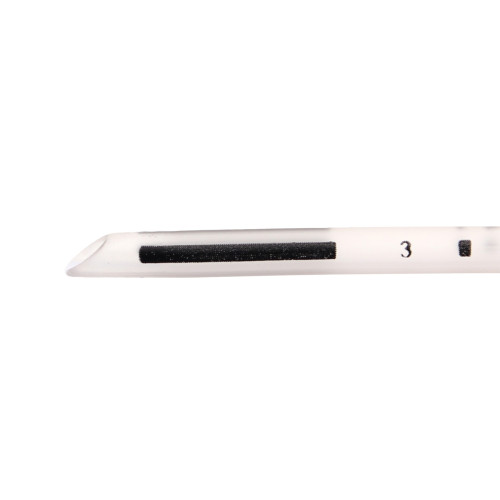

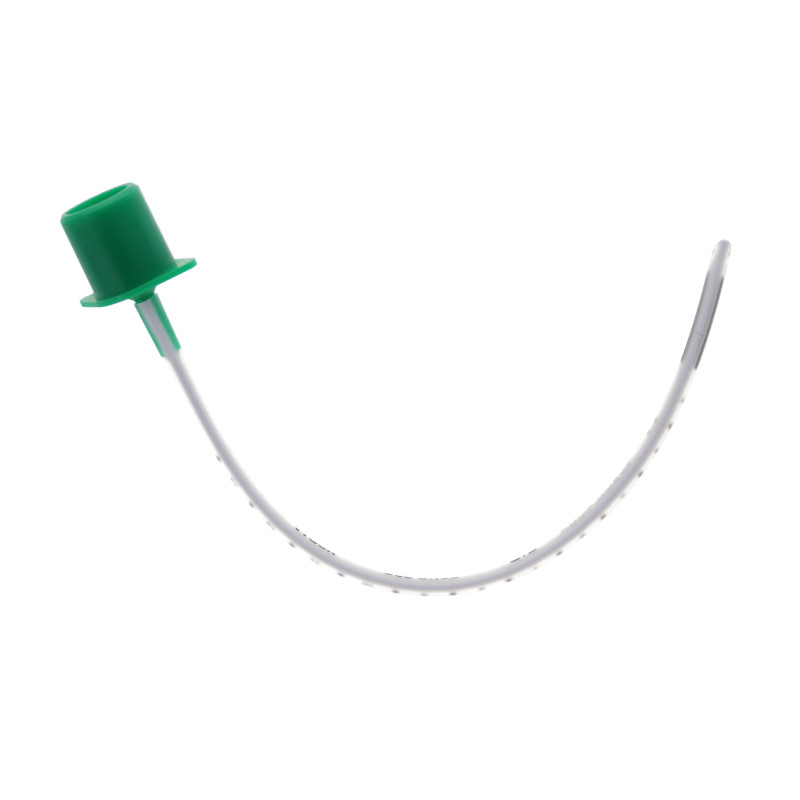

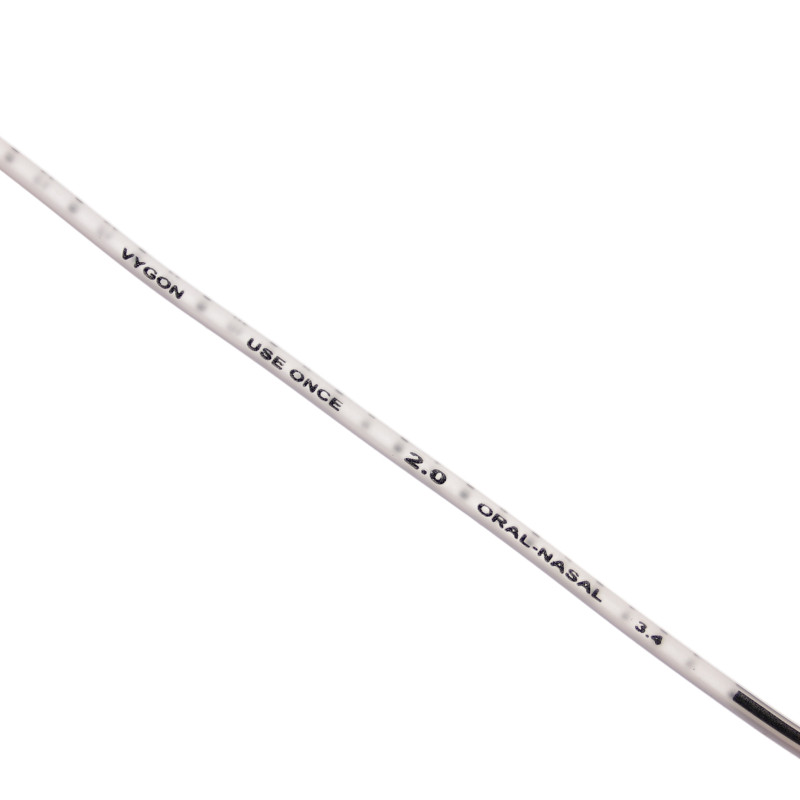

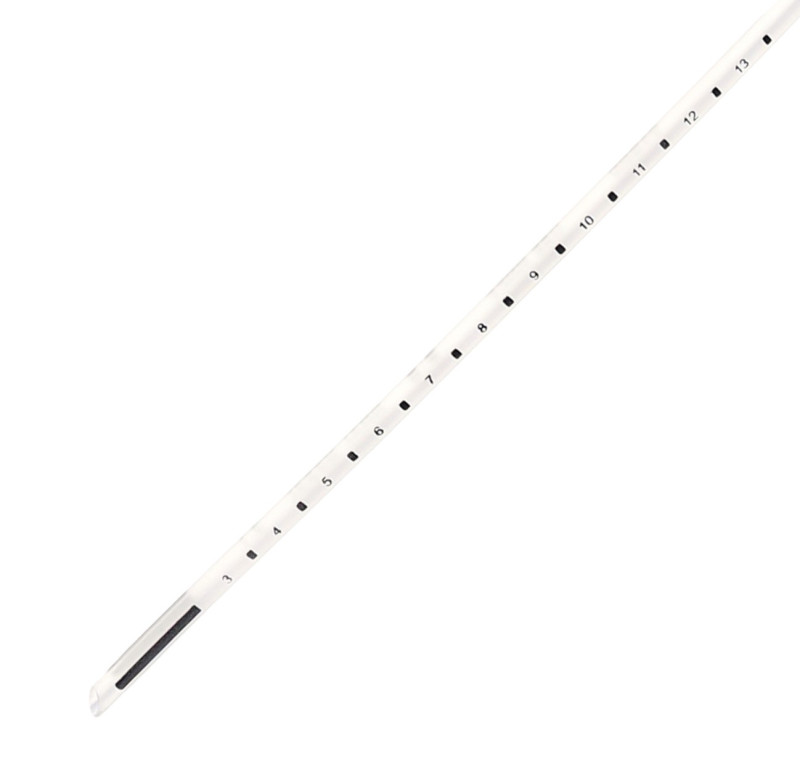

Plain endotracheal tube (without cuff) made of:- a PVC transparent tube with radiopaque line. The distal end is bevelled to 38°. They have a 17mm intubation depth mark at the distal end. The tube has distance markings every 0.5cm for tubes of size 2.0 to 3.5, markings every centimetre from 9 to 21cm for tubes size 4.0 and 4.5, every centimetre from 13 to 21cm for tube size 5.0 and every centimetre from 15 to 25cm for tubes size 5.5 to 6.5.
- standard 15mm (male) proximal connector.
10 sizes are available: from 2.0mm internal diameter to 6.5mm.
References and Features
| Distal mark | Tube | Packaging | |||||
|---|---|---|---|---|---|---|---|
| Favourites | Code | Length mm | Int. Ø mm | Ext. Ø mm | Length mm | Units/Box | Units/Case |
| 516.20 | 15 | 2.0 | 3.4 | 165 | 25 | 300 | |
| 516.25 | 17.5 | 2.5 | 4.1 | 165 | 25 | 300 | |
| 516.30 | 25 | 3.0 | 4.6 | 165 | 25 | 300 | |
| 516.35 | 25 | 3.5 | 5.2 | 165 | 25 | 300 | |
| 516.40 | 25 | 4.0 | 5.7 | 230 | 20 | 160 | |
| 516.45 | 25 | 4.5 | 6.2 | 230 | 20 | 160 | |
| 516.50 | 25 | 5.0 | 7.0 | 230 | 20 | 160 | |
| 516.55 | 25 | 5.5 | 8.0 | 270 | 20 | 160 | |
| 516.60 | 25 | 6.0 | 8.5 | 270 | 20 | 160 | |
| 516.65 | 25 | 6.5 | 9.0 | 270 | 20 | 160 | |
Additional information
-
Contains Latex No
-
Contains animal product No
-
Pyrogen-free No
