Dialysis catheters
Trilysecath
Description
trilysecath is a triple-lumen polyurethane catheter, totally radiopaque and inserted using the Seldinger technique. Available Lengths 15cm: 1139… Read more
Indication
Dialysis catheters indicated for temporary vascular access for hemodialysis or hemoperfusion.
Description
trilysecath is a triple-lumen polyurethane catheter, totally radiopaque and inserted using the Seldinger technique.Available Lengths
15cm: 1139.215 (12Fr) and 1139.51 (12Fr)20cm: 1139.220 (12Fr) and 1139.52 (12Fr)

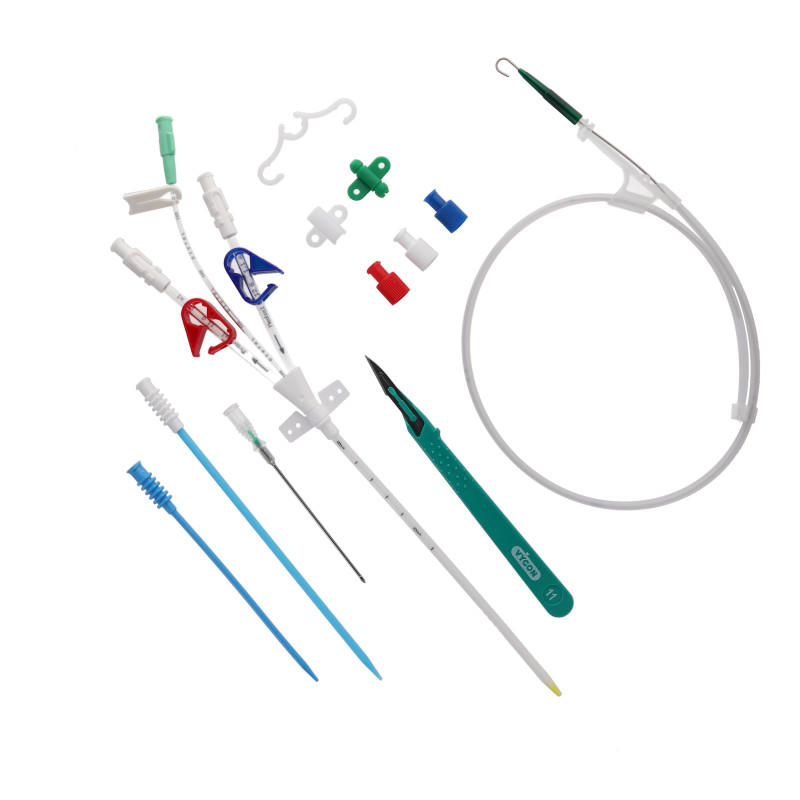

Kit Components
trilysecath tray includes:- 1 triple-lumen catheter (centimeter graduations from 9cm from the distal tip)
- 1 puncture needle
- 1 graduated "J" guidewire and guidewire advancer
- 2 caps
- 2 dilators
- 1 scalpel
- 1 orientation clip (only for codes 1139.51/.52)
This device is also available in a double-lumen version.
For more informations, refer to dualysecath.
References and Features
| Catheter | Distal lumen | Medial lumen | Proximal lumen | Guidewire | Packaging | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Favourites | Code | Length cm | Ø Fr | Prim. vol. ml | Flow rate ml/min | Prim. vol. ml | Flow rate ml/min | Prim. vol. ml | Flow rate ml/min | Ext. Ø mm | Length cm | Material | Units/Box | Units/Case |
| 1139.215 | 15 | 12 | 0.4 | 55 | 1.1 | 250 | 1.3 | 320 | 0.88 | 60 | Stainless steel | 10 | 10 | |
| 1139.220 | 20 | 12 | 0.6 | 50 | 1.3 | 220 | 1.5 | 290 | 0.88 | 60 | Stainless steel | 10 | 10 | |
| 1139.51 | 15 | 12 | 0.51 | 55 | 1.6 | 230 | 1.7 | 400 | 0.88 | 60 | Nitinol | 10 | 10 | |
| 1139.52 | 20 | 12 | 0.6 | 43 | 1.8 | 195 | 1.9 | 365 | 0.88 | 60 | Nitinol | 10 | 10 | |
Additional information
-
Contains Latex No
-
Contains animal product No
-
Pyrogen-free Yes
