Safety Huber needle
PPS Flow+
Description
PPS® Flow+ are curved safety Huber needles with extension line. PPS® Flow+ curved safety Huber needles are available: … Read more
Indication
PPS® Flow+ safety Huber needles are indicated for the administration or withdrawal of fluids through implantable ports.
PPS® Flow+ are designed to prevent blood-borne pathogen exposures caused by accidental needle punctures. POLYPERF® Safe does not protect against other routes of blood-borne pathogen transmission.
Some PPS® Flow+ items have a closed Luer BD Q-Syte™ access system at the tip of the line. The safety Huber needle remains always closed thanks to this device sealed on its tubing. A universal system, BD Q-Syte™ constitutes a barrier against infections and gases, thus improving the access to intravenous routes. Its design ensures that the catheter remain aseptic after a syringe or infusion line removal.
Already pre-mounted on the Huber needles, the closed BD Q-Syte™ system is instrumental in care procedure simplifications, and good practice compliance.
Single hand removal of the safety Huber needle PPS® Flow+ automatically and simultaneously generates a positive pressure (saline injection) in the implantable port, thus limiting the risk of blood clot obstruction of the distal tip of the catheter.
Product highlights
Automatic positive pressure:
Thanks to its design, PPS® Flow+ perform automatic positive pressure when the needle is removed. Only one hand is needed to remove PPS® Flow+ and flush the catheter at the same time. Automatic positive pressure helps prevent catheter occlusions (1) (2) (3).
Prevention of Needle Stick Injuries (NSI):
PPS® Flow+ is a safe Huber needle offering protection against the risks of NSI (4). During disposal, there is no contact between the body and the needle tip.
Visibility of the puncture site:
PPS® Flow+'s design enables visibility of the puncture site, so that any complications can be monitored.
From paediatric to adults:
PPS® Flow+ is part of a wide range of Huber needles to suit all patient morphologies:
- 3 gauges (22G, 20G and 19G)
- 6 lengths (15, 17, 20, 25, 30, 35 mm).
PPS® Flow+ is available with or without a Y site.
(1) Gorski LA, Hadaway L, Hagle ME, Broadhurst D, Clare S, Kleidon T, Meyer BM, Nickel B, Rowley S, Sharpe E, Alexander
M. Infusion Therapy Standards of Practice, 8th Edition. J Infus Nurs. 2021 Jan-Feb 01;44(1S Suppl 1):S1-S224. doi: 10.1097/
NAN.0000000000000396. PMID: 33394637.
(2) Lapalu J, Losser MR, Albert O, Levert A, Villiers S, Faure P, Douard MC. Totally implantable port management: impact of
positive pressure during needle withdrawal on catheter tip occlusion (an experimental study). J Vasc Access. 2010 Jan-
Mar;11(1):46-51. doi: 10.1177/112972981001100110. PMID: 20175068.
(3) Levert H, Albert O, Barret E, Villiers S, Douard MC, A randomized experimental comparison of two safety Huber
needles (HN) allowing manual or automatic positive pressure during needle removal: effect on the distal catheter
reflux, poster, WoCoVA, 2014.
(4) Survey of the occurrence circumstances of Accidental Blood Exposure due to punctures with safety materials, GERES – AFSSAPS Collaboration,
G. Pellissier, 18th Annual GERES conference, 2008.
The Huber needle PPS® Flow+ is a sterile medical device of class IIa.
Certification established by GMED, notified body n°0459.
They are indicated for the administration into or withdrawal of fluids from implanted ports.
Read the instructions for use carefully.
Device manufactured by PEROUSE MEDICAL and distributed by VYGON.
Description
PPS® Flow+ are curved safety Huber needles with extension line.PPS® Flow+ curved safety Huber needles are available:
- in various lengths and diameters

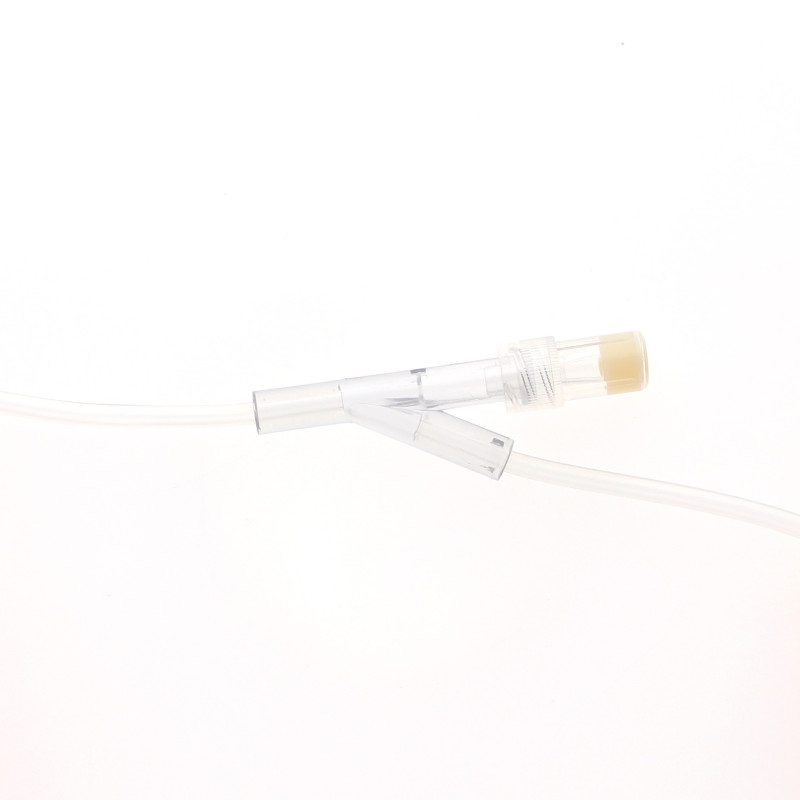

- with or without a lateral injection site (“Y” connector)
PPS® Flow+ curved safety Huber needles are available with a closed BD Q-Syte™ Luer access system (pre-sealed to the Luer lock of the tubular):
- at the distal tip of the tubing for product codes with no “Y” connector (72xxxx)
- or only at the lateral site of injection for product codes with a “Y” connector (73xxxx)
They are provided with:
- Luer-lock connectors on which are screwed
- closed protective cap (end of the main line) which must not be used as sealing caps for references with a “Y” connector.
- clamps.
Tubing is DEHP (di-2 ethylhexyl-phthalate) free.
PPS® Flow+ are packaged in 12 unit-cartons.
References and Features
| Needle | Packaging | ||||||
|---|---|---|---|---|---|---|---|
| Favourites | Code | Diameter G | Ext. Ø mm | Priming volume ml | Length mm | Units/Box | Units/Case |
| 701507 | 22 | 0.7 | 0.95 | 15 | 12 | 360 | |
| 701509 | 20 | 0.9 | 0.95 | 15 | 12 | 360 | |
| 701511 | 19 | 1.1 | 0.95 | 15 | 12 | 360 | |
| 701707 | 22 | 0.7 | 0.95 | 17 | 12 | 360 | |
| 701709 | 20 | 0.9 | 0.95 | 17 | 12 | 360 | |
| 701711 | 19 | 1.1 | 0.95 | 17 | 12 | 360 | |
| 702007 | 22 | 0.7 | 0.95 | 20 | 12 | 360 | |
| 702009 | 20 | 0.9 | 0.95 | 20 | 12 | 360 | |
| 702011 | 19 | 1.1 | 0.95 | 20 | 12 | 360 | |
| 702507 | 22 | 0.7 | 0.95 | 25 | 12 | 360 | |
| 702509 | 20 | 0.9 | 0.95 | 25 | 12 | 360 | |
| 702511 | 19 | 1.1 | 0.95 | 25 | 12 | 360 | |
| 703007 | 22 | 0.7 | 0.95 | 30 | 12 | 360 | |
| 703009 | 20 | 0.9 | 0.95 | 30 | 12 | 360 | |
| 703011 | 19 | 1.1 | 0.95 | 30 | 12 | 360 | |
| 703507 | 22 | 0.7 | 0.95 | 35 | 12 | 360 | |
| 703509 | 20 | 0.9 | 0.95 | 35 | 12 | 360 | |
| 703511 | 19 | 1.1 | 0.95 | 35 | 12 | 360 | |
| 711507 | 22 | 0.7 | 1.1 | 15 | 12 | 360 | |
| 711509 | 20 | 0.9 | 1.1 | 15 | 12 | 360 | |
| 711511 | 19 | 1.1 | 1.1 | 15 | 12 | 360 | |
| 711707 | 22 | 0.7 | 1.1 | 17 | 12 | 360 | |
| 711709 | 20 | 0.9 | 1.1 | 17 | 12 | 360 | |
| 711711 | 19 | 1.1 | 1.1 | 17 | 12 | 360 | |
| 712007 | 22 | 0.7 | 1.1 | 20 | 12 | 360 | |
| 712009 | 20 | 0.9 | 1.1 | 20 | 12 | 360 | |
| 712011 | 19 | 1.1 | 1.1 | 20 | 12 | 360 | |
| 712507 | 22 | 0.7 | 1.1 | 25 | 12 | 360 | |
| 712509 | 20 | 0.9 | 1.1 | 25 | 12 | 360 | |
| 712511 | 19 | 1.1 | 1.1 | 25 | 12 | 360 | |
| 713007 | 22 | 0.7 | 1.1 | 30 | 12 | 360 | |
| 713009 | 20 | 0.9 | 1.1 | 30 | 12 | 360 | |
| 713011 | 19 | 1.1 | 1.1 | 30 | 12 | 360 | |
| 713507 | 22 | 0.7 | 1.1 | 35 | 12 | 360 | |
| 713509 | 20 | 0.9 | 1.1 | 35 | 12 | 360 | |
| 713511 | 19 | 1.1 | 1.1 | 35 | 12 | 360 | |
| 721507 | 22 | 0.7 | 0.82 | 15 | 12 | 360 | |
| 721509 | 20 | 0.9 | 0.82 | 15 | 12 | 360 | |
| 721511 | 19 | 1.1 | 0.82 | 15 | 12 | 360 | |
| 721707 | 22 | 0.7 | 0.82 | 17 | 12 | 360 | |
| 721709 | 20 | 0.9 | 0.82 | 17 | 12 | 360 | |
| 721711 | 19 | 1.1 | 0.82 | 17 | 12 | 360 | |
| 722007 | 22 | 0.7 | 0.82 | 20 | 12 | 360 | |
| 722009 | 20 | 0.9 | 0.82 | 20 | 12 | 360 | |
| 722011 | 19 | 1.1 | 0.82 | 20 | 12 | 360 | |
| 722507 | 22 | 0.7 | 0.82 | 25 | 12 | 360 | |
| 722509 | 20 | 0.9 | 0.82 | 25 | 12 | 360 | |
| 722511 | 19 | 1.1 | 0.82 | 25 | 12 | 360 | |
| 723007 | 22 | 0.7 | 0.82 | 30 | 12 | 360 | |
| 723009 | 20 | 0.9 | 0.82 | 30 | 12 | 360 | |
| 723011 | 19 | 1.1 | 0.82 | 30 | 12 | 360 | |
| 723507 | 22 | 0.7 | 0.82 | 35 | 12 | 360 | |
| 723509 | 20 | 0.9 | 0.82 | 35 | 12 | 360 | |
| 723511 | 19 | 1.1 | 0.82 | 35 | 12 | 360 | |
| 731507 | 22 | 0.7 | 1.02 | 15 | 12 | 360 | |
| 731509 | 20 | 0.9 | 1.02 | 15 | 12 | 360 | |
| 731511 | 19 | 1.1 | 1.02 | 15 | 12 | 360 | |
| 731707 | 22 | 0.7 | 1.02 | 17 | 12 | 360 | |
| 731709 | 20 | 0.9 | 1.02 | 17 | 12 | 360 | |
| 731711 | 19 | 1.1 | 1.02 | 17 | 12 | 360 | |
| 732007 | 22 | 0.7 | 1.02 | 20 | 12 | 360 | |
| 732009 | 20 | 0.9 | 1.02 | 20 | 12 | 360 | |
| 732011 | 19 | 1.1 | 1.02 | 20 | 12 | 360 | |
| 732507 | 22 | 0.7 | 1.02 | 25 | 12 | 360 | |
| 732509 | 20 | 0.9 | 1.02 | 25 | 12 | 360 | |
| 732511 | 19 | 1.1 | 1.02 | 25 | 12 | 360 | |
| 733007 | 22 | 0.7 | 1.02 | 30 | 12 | 360 | |
| 733009 | 20 | 0.9 | 1.02 | 30 | 12 | 360 | |
| 733011 | 19 | 1.1 | 1.02 | 30 | 12 | 360 | |
| 733507 | 22 | 0.7 | 1.02 | 35 | 12 | 360 | |
| 733509 | 20 | 0.9 | 1.02 | 35 | 12 | 360 | |
| 733511 | 19 | 1.1 | 1.02 | 35 | 12 | 360 | |
Additional information
-
Contains Latex No
-
Contains animal product No
-
Pyrogen-free No
Documentation
-
Brochure Vascular Access Range
-
Instructions for use
