Umbilical catheters
Single Lumen PUR
Description
Catheter in radiopaque and transparent PUR, can be used for venous or arterial access. Supplied with a small 2 way stopcock and identification plugs… Read more
Indication
This catheter can be introduced either in the umbilical vein or in the umbilical artery.
An umbilical venous catheter is mainly used for neonatal emergencies for a short period of time (a few days). It allows parenteral nutrition, blood or blood products transfusion, exchange-transfusion, drugs administrations, central venous pressure measurement etc.
An arterial umbilical catheter is mainly used for neonatal emergencies for a short period of time (a few days). It allows : blood gas analysis, arterial pressure measurement, the administration of some drugs or solutions...
Description

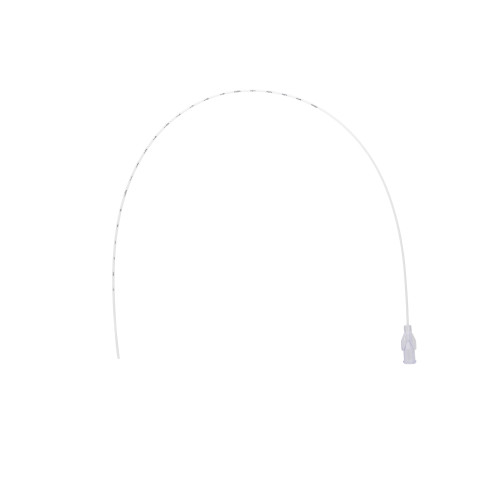

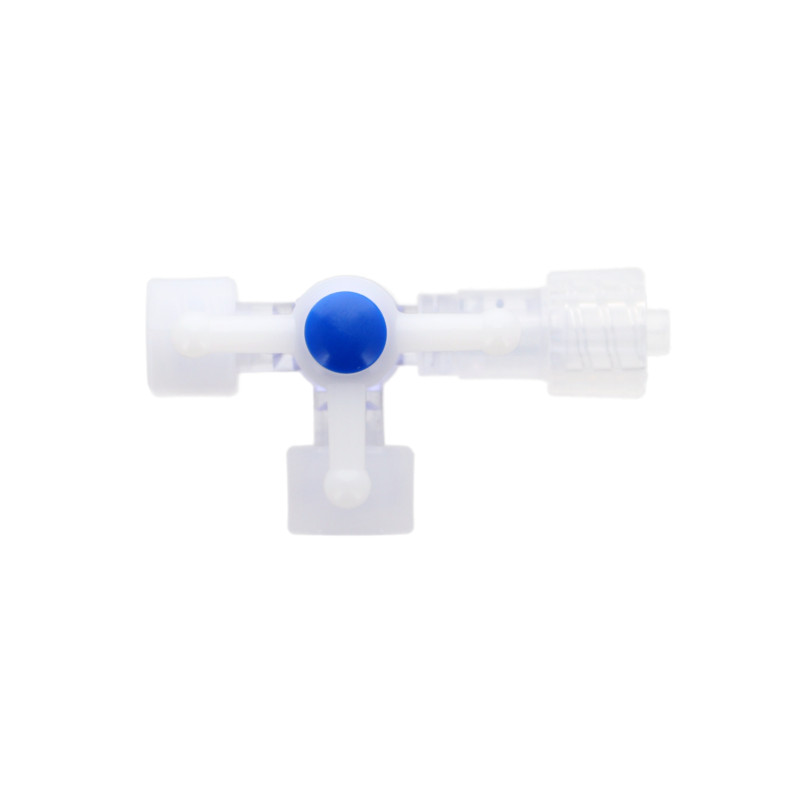

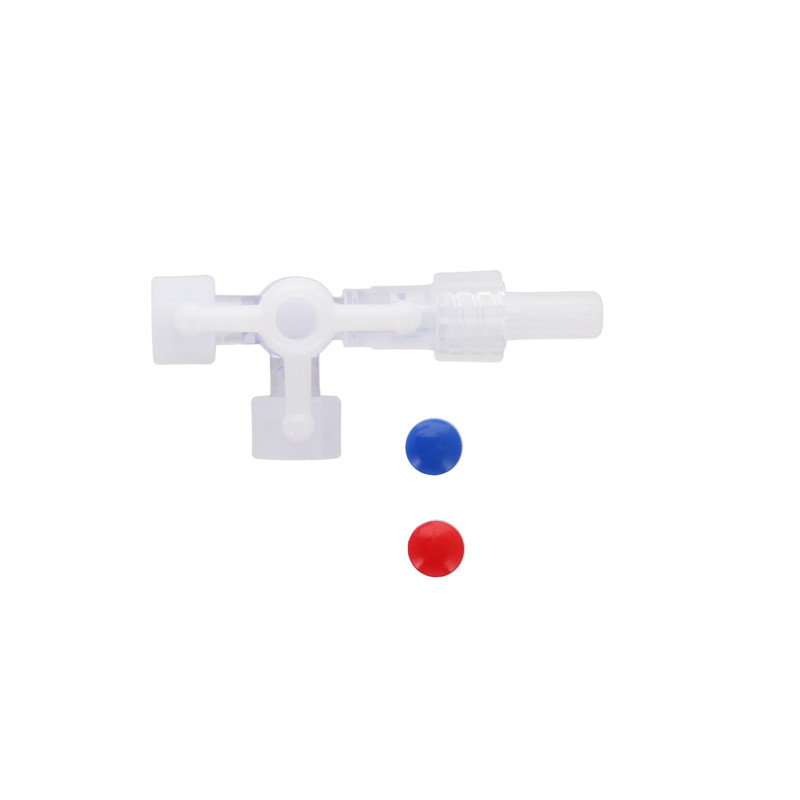

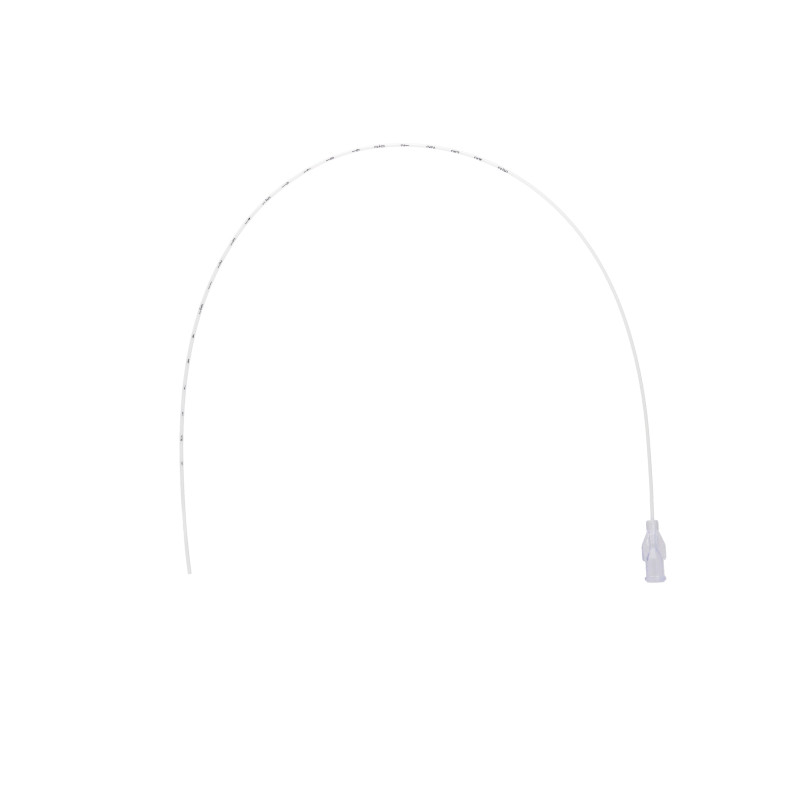

Catheter in radiopaque and transparent PUR, can be used for venous or arterial access.Supplied with a small 2 way stopcock and identification plugs (red for arterial use, blue for venous use).

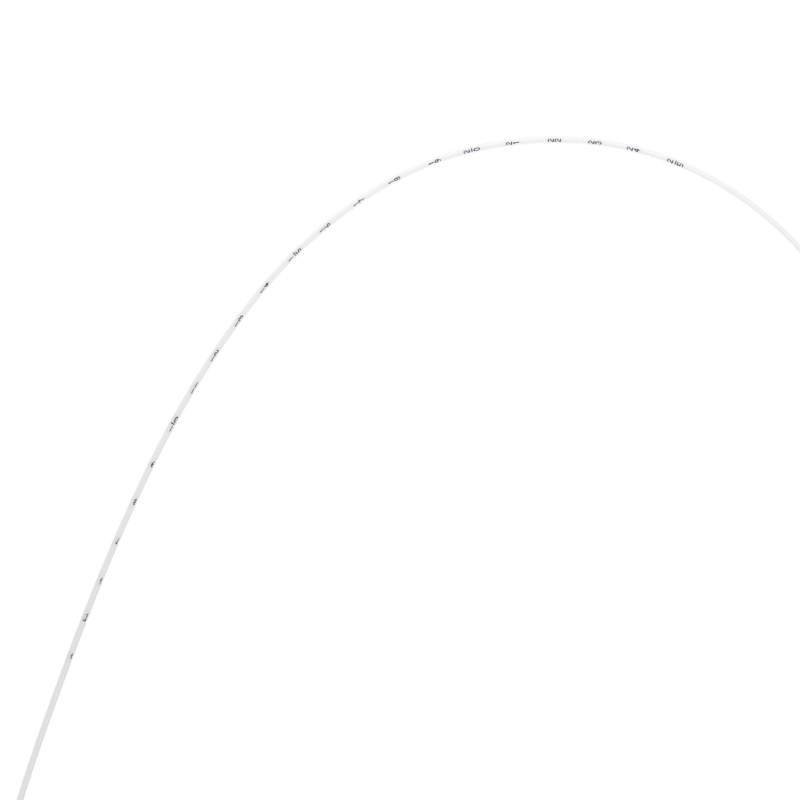

Actual distance from the distal tip is printed numerically from 4 to 25 cm.
- Polyurethane has good haemocompatibility
- No plasticiser release
Fr 2.5* (length 30 cm) - 3.5* (length 40 cm) - Quantity box/case: 8/120
* To be ordered under code number 1270.02 -1270.03.
Fr 4 - 5 - 8 -Length 40 cm - Quantity box/case: 20/180
References and Features
| Catheter | Packaging | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Favourites | Code | Int. Ø mm | Ext. Ø mm | Ø Fr | Length cm | Flow rate ml/min | Prim. vol. ml | Units/Box | Units/Case |
| 1270.02 | 0.5 | 0.8 | 2.5 | 30 | 3 | 0.12 | 8 | 120 | |
| 1270.03 | 0.8 | 1.2 | 3.5 | 40 | 10 | 0.27 | 8 | 120 | |
| 1270.04 | 0.8 | 1.5 | 4 | 40 | 10 | 0.29 | 20 | 180 | |
| 1270.05 | 1.0 | 1.7 | 5 | 40 | 23 | 0.40 | 20 | 180 | |
| 1270.08 | 1.5 | 2.5 | 8 | 40 | 100 | 0.81 | 20 | 180 | |
Additional information
-
Contains Latex No
-
Contains animal product No
-
Pyrogen-free Yes
Documentation
-
Brochure Umbilical catheter
-
Instructions for use
