Pressure injectable antimicrobial PICC
Maxflo expert nursing kit
Description
Maxflo Expert is a radiopaque peripherally inserted central catheter designed for medium and long-term IV therapy which can also be used for CT-rated… Read more
Indication
Medium and long-term IV therapy at home or in the hospital (parenteral nutrition, chemotherapy, antibiotherapy, pain treatment ...).
CT-rated injection of contrast media.
Product highlights
Antimicrobial technology:
The PICC-Line Maxflo Expert features Agion™ antimicrobial technology. Agion™ is an inorganic silver ion compound that maintains an antimicrobial surface to help control infection.
Safe CT injections:
The Maxflo Expert allows highest flow rates up to 7mL/s, which makes the CT examination of a wider number of organs possible and allows better quality image and tissue visualisation.
This medical device is compatible with high pressure injections of 325 psi (22.4 bar).
Wide range for all insertion techniques:
The Maxflo Expert is available in three catheter sizes: 4F, 5F and 6F, in one, two or three lumens. To meet the needs of different types of placers and their insertion technique, there are several kit configurations:
- with 50cm, 67cm guide for the Micro Seldinger technique,
- with 135 cm guide for the "over-the-wire" technique.
Description
Maxflo Expert is a radiopaque peripherally inserted central catheter designed for medium and long-term IV therapy which can also be used for CT-rated injections of contrast media. Pressure resistance: 325 psi (22.4 bar).Maxflo Expert is made of biostable polyurethane which allows a long-term use of the catheter (several months if necessary). It is supplied with a stylet to facilitate its insertion.Other features of the product:
- Length of catheter 55cm
- Radiopaque
- Antimicrobial (Antimicrobial agent: Agion technology based on silver ions)
- Centimetric graduations and numerical markings
- 1, 2 or 3 lumen
- 1 Stylet
- 1 Introducer Micro-Seldinger type with safe micro puncture needle (21G)

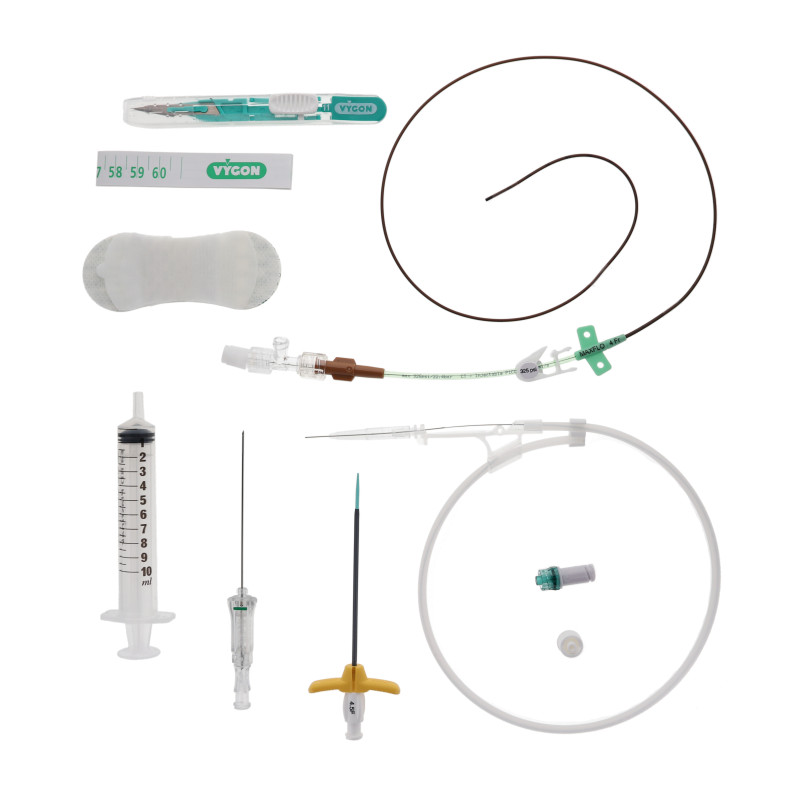

Maxflo Expert is supplied in a rigid blister pack (double packaging) containing:
- 1 antimicrobial catheter, winged hub and integral extension tube (length 9cm) with Roberts clamp with a printed inlay with on one side “maximum flow rate” and on the other side “325 psi”
- 1 stylet to make the catheter more rigid and thus facilitate its insertion
- 1 "T" proximal connector. The lateral port of the T connector allows the injection of saline solution (with a syringe) to lubricate the stylet and facilitate its sliding on removal or to inject saline solution in case of venous spasm, to open the path
- 1 echogenic puncture needle of small diameter 21G with safety features to avoid the risk of needle-stick injury
- 1 Nitinol guidewire with stainless steel flexible tip and guide advancer, Ø 0.46mm, length 50cm
- 1 peel-away Desilet length 7cm
- 1 safety scalpel
- 1 Bionector (2 Bionector for double lumen Maxflo, 3 Bionector for triple lumen Maxflo)
- 1 syringe 10ml
- 1 tape measure
- 1 Grip-Lok stabilization device (available in sterile individual packaging under code 5804.10)
Other types of kits are available:
- Maxflo with a 67cm guidewire: see technical file code 8394.405/406/414/415/425/426/436,
- Maxflo with a 137cm guidewire, without stylet, for "over the wire insertion" see technical file: code 8394.505/506/514/515/525/526/536.
References and Features
| Guidewire | Catheter | Distal lumen | Packaging | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Favourites | Code | Ø mm | Length cm | Ø Fr | Ext. Ø mm | Length cm | Flow rate ml/min | Prim. vol. ml | Lumen | Proximal end | Max. flow rate ml/s | Max. pressure bar | Flow rate ml/min | Prim. vol. ml | Units/Box | Units/Case |
| 8394.105 | 0.46 | 50 | 5 | 1.75 | 55 | 46 | 1.0 | 1 | Non tapered | 7 | 22.4 | - | - | 10 | 10 | |
| 8394.14 | 0.46 | 50 | 4 | 1.35 | 55 | 17 | 0.8 | 1 | Tapered | 5 | 22.4 | - | - | 10 | 10 | |
| 8394.15 | 0.46 | 50 | 5 | 1.7 | 55 | 28 | 0.8 | 1 | Non tapered | 6 | 22.4 | - | - | 10 | 10 | |
| 8394.206 | 0.46 | 50 | 6 | 2.0 | 55 | 14 | 0.8 | 2 | - | 6 | 22.4 | - | - | 10 | 10 | |
| 8394.25 | 0.46 | 50 | 5 | 1.75 | 55 | 9 | 0.75 (x2) | 2 | Tapered | 5 | 22.4 | - | - | 10 | 10 | |
| 8394.26 | 0.46 | 500 | 6 | 2.0 | 55 | - | - | 2 | - | - | - | 14 (x2) | 0.7 (x2) | 10 | 10 | |
| 8394.36 | 0.46 | 50 | 6 | 2.0 | 55 | 4 - 10 - 4 | 0.45 - 0.85 - 0.45 | 3 | Tapered | 5 | 22.4 | - | - | 10 | 10 | |
Additional information
-
Contains Latex No
-
Contains animal product No
-
Pyrogen-free Yes
Documentation
-
Brochure PICC Line Range EN
-
Brochure Vascular Access Range
-
Instructions for use
