Plexus and peripheral nerve blocks: Needles
VygoPlex ENS & Echo NRFit
Description
Needle for plexus and peripheral nerve blocks allowing to localize the plexus or the nerve either under ECHOGRAPHY or by ELECTRO-NEUROSTIMULATION… Read more
Indication
Vygoplex ENS&Echo needles are indicated for plexus and peripheral nerve blocks.
Echogenic and neurostimulating needle.
Product highlights
- The NRFit Vygoplex ENS & echo is a neurostimulable and echogenic needle. Thanks to its sandblasting technology on the first two centimeters and its neurostimulation cable, the position of the needle is identified.
- Wide range: the NRFit Vygoplex ENS & Echo NRFit needle is available in 7 different sizes, gauges from 20 to 25G and 2 bevel types to adapt to different patient and morphology.
- The range is available in NRFit : the secure connexion complaint with the ISO 80369-6 standard.
Description
Needle for plexus and peripheral nerve blocks allowing to localize the plexus or the nerve either under ECHOGRAPHY or by ELECTRO-NEUROSTIMULATION.The needle is made echogenic up to the tip of the bevel by a sandblasting treatment and has an insulating coating over its entire length, only the tip of the bevel is conductive.
Vygoplex ENS&Echo needles are available with either an NRFit or Luer connection with a 20° or 30° bevel:
- Vygoplex ENS&Echo NRFit, 20° bevel: code AEYMVFxxxxx
- Vygoplex ENS&Echo NRFit, 30° bevel: codes AEQMVFxxxxx
- Vygoplex ENS&Echo Luer, 20° bevel: codes AEYMVxxxxx
- Vygoplex ENS&Echo Luer, 30° bevel: codes AEQMVxxxxx
Vygoplex ENS&Echo is available in 7 lengths (35, 40, 50, 70, 80, 100, 120 mm) and 6 gauges (20, 21, 22, 23, 24, 25G). The millimetric marking on the first two centimeters and the centimetric marking on the rest of the needle length allow to check the inserted length at any time. A double mark indicates a 5 cm depth.

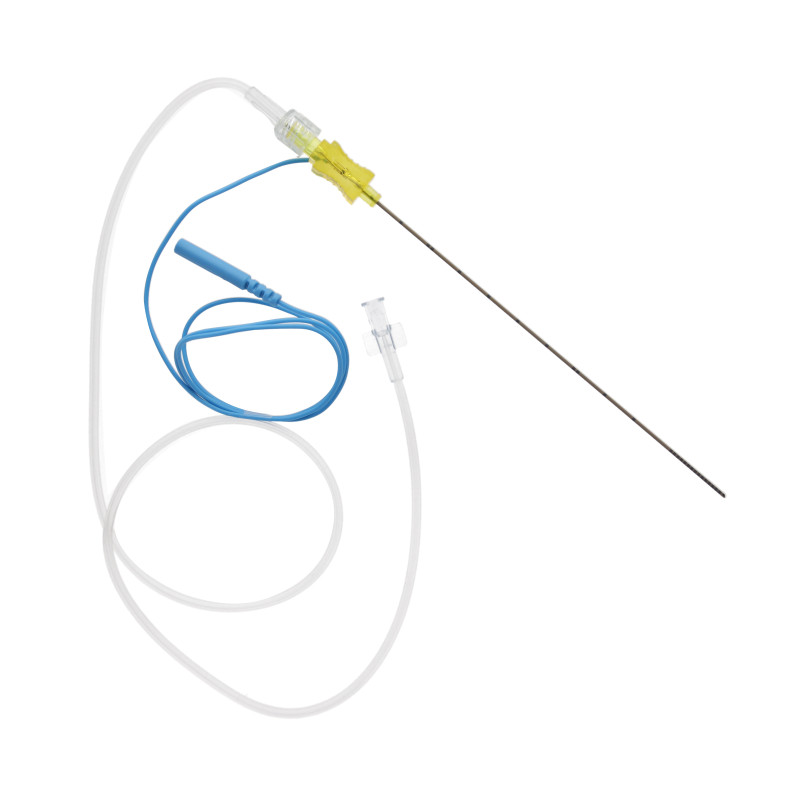

The needle also includes a 55 cm electrical cord with a female connector and a 51 cm transparent removable extension to allow the injection of the anesthetic.

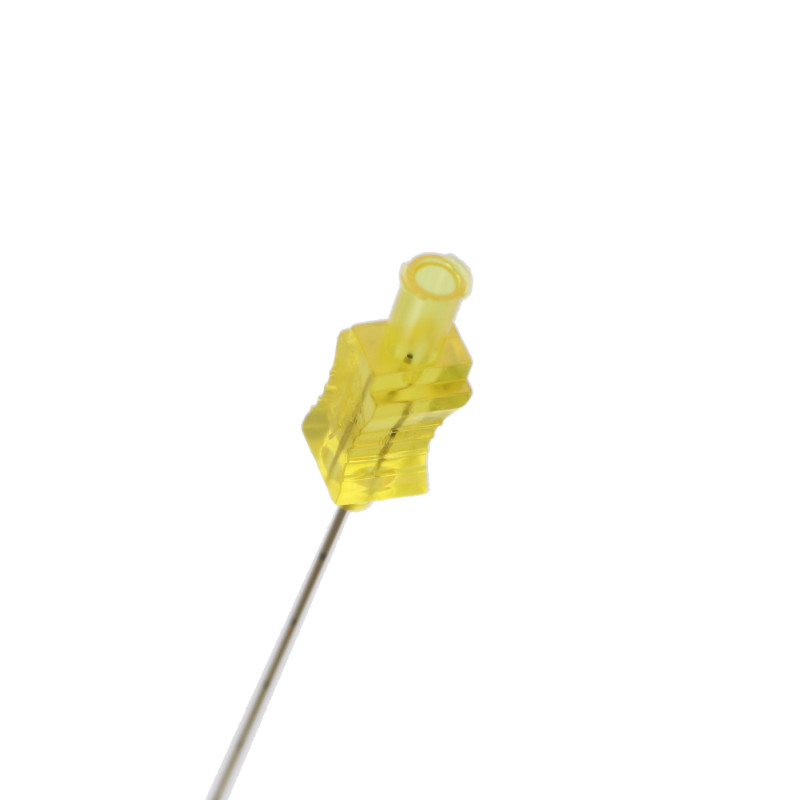

It has an ergonomic hub for a good grip. Its transparency allows quick detection of any blood reflux during the aspiration test.
A device (VISE) preventing any risk of needle-stick injury is included in the packaging and can be used once the procedure is completed.
References and Features
| Needle | Packaging | |||||
|---|---|---|---|---|---|---|
| Favourites | Code | Bevel | Length mm | Gauge G | Units/Box | Units/Case |
| AEQMVF20120 | 30°C | 120 | 20 | 10 | 200 | |
| AEQMVF21100 | 30°C | 100 | 21 | 10 | 200 | |
| AEQMVF21120 | 30°C | 120 | 21 | 10 | 200 | |
| AEQMVF22050 | 30°C | 50 | 22 | 10 | 200 | |
| AEQMVF22080 | 30°C | 80 | 22 | 10 | 200 | |
| AEQMVF23035 | 30°C | 35 | 23 | 10 | 200 | |
| AEQMVF24040 | 30°C | 40 | 24 | 10 | 200 | |
| AEQMVF24070 | 30°C | 70 | 24 | 10 | 200 | |
| AEQMVF24080 | 30°C | 80 | 24 | 10 | 200 | |
| AEQMVF24100 | 30°C | 100 | 24 | 10 | 200 | |
| AEQMVF25050 | 30°C | 50 | 25 | 10 | 200 | |
| AEQMVF25080 | 30°C | 80 | 25 | 10 | 200 | |
| AEQMVF25120 | 30°C | 120 | 25 | 10 | 200 | |
| AEYMVF20120 | 20°C | 120 | 20 | 10 | 200 | |
| AEYMVF21100 | 20°C | 100 | 21 | 10 | 200 | |
| AEYMVF21120 | 20°C | 120 | 21 | 10 | 200 | |
| AEYMVF22050 | 20°C | 50 | 22 | 10 | 200 | |
| AEYMVF22080 | 20°C | 80 | 22 | 10 | 200 | |
| AEYMVF23035 | 20°C | 35 | 23 | 10 | 200 | |
| AEYMVF24040 | 20°C | 40 | 24 | 10 | 200 | |
| AEYMVF24070 | 20°C | 70 | 24 | 10 | 200 | |
| AEYMVF24080 | 20°C | 80 | 24 | 10 | 200 | |
| AEYMVF24100 | 20°C | 100 | 24 | 10 | 200 | |
| AEYMVF25050 | 20°C | 50 | 25 | 10 | 200 | |
| AEYMVF25080 | 20°C | 80 | 25 | 10 | 200 | |
| AEYMVF25120 | 20°C | 120 | 25 | 10 | 200 | |
Additional information
-
Contains Latex No
-
Contains animal product No
-
Pyrogen-free Yes
Documentation
-
Catalogue Pain Management
-
Brochure Vygoplex
-
Instructions for use
