Spinal anaesthesia and lumbar puncture: Needles
Quincke
Description
Spinal Quincke needle with a transparent hub and an obturating stylet. The non-Luer connector complies to the ISO 80369-6 norm, named NRFit™… Read more
Indication
Needles with secure connection for the injection of anesthetic solutions into the subarachnoid space; for lumbar puncture to collect cerebrospinal fluid for tests or for the injection of medicinal agents as part of medical treatment.
Description

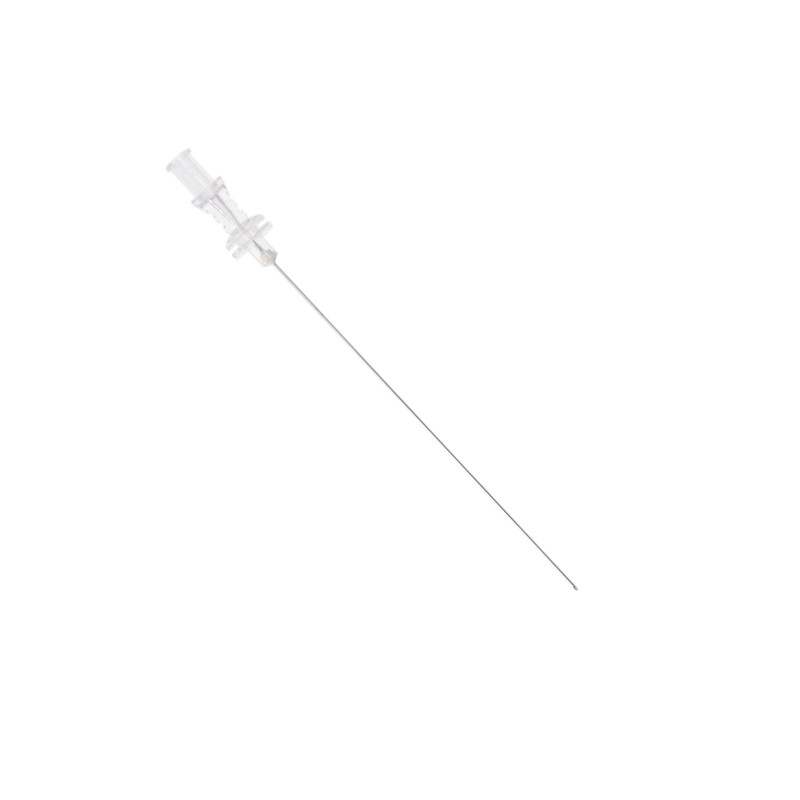

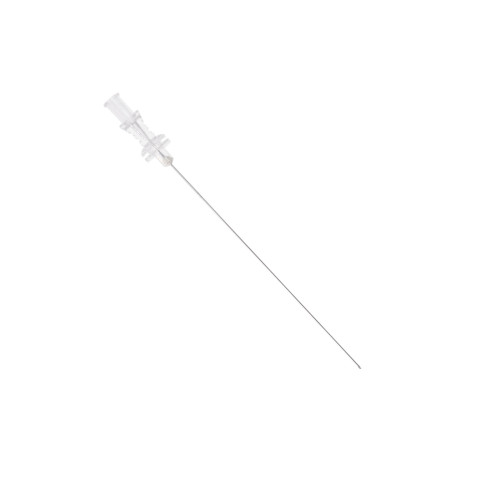

- Spinal Quincke needle with a transparent hub and an obturating stylet.
- The non-Luer connector complies to the ISO 80369-6 norm, named NRFit™. The range of devices with a NRFit™ connection has the commercial name Neurafit™. This range features a NRFit™ type connection that complies with the ISO-80369-6 standard. These needles cannot be connected to devices intended for another application.
- The stylet hub is colour-coded and corresponds to the external needle diameter.
- The needle hub is made with transparent plastic to visualize the cerebrospinal fluid and is ergonomic to ensure an easy handling.
- The stylet is tightly adjusted to the bevel of the needle (avoids the risk of coring and tissue damage, reducing the risk of infection). It has a lug to indicate bevel orientation and it can be easily repositioned in the needle if the dura-mater is not punctured.
References and Features
| Needle | Packaging | ||||||
|---|---|---|---|---|---|---|---|
| Favourites | Code | Length mm | Ext. Ø mm | Gauge G | Colour code | Units/Box | Units/Case |
| 5180.05A1 | 90 | 0.53 | 25 | Orange | 25 | 1000 | |
| 5180.27A1 | 120 | 0.72 | 22 | Black | 25 | 700 | |
| 5183.47A1 | 38 | 0.72 | 22 | Black | 25 | 1000 | |
| 5183.49A1 | 38 | 0.9 | 20 | Yellow | 25 | 1000 | |
| 5183.92A1 | 90 | 1.2 | 18 | Pink | 25 | 1000 | |
| 5183.97A1 | 90 | 0.72 | 22 | Black | 25 | 1000 | |
| 5183.99A1 | 90 | 0.9 | 20 | Yellow | 25 | 1000 | |
Additional information
-
Contains Latex No
-
Contains animal product No
-
Pyrogen-free Yes
Documentation
-
Catalogue Pain Management
-
Brochure NRFit
-
Instructions for use
