Plexus and peripheral nerve blocks: Needles

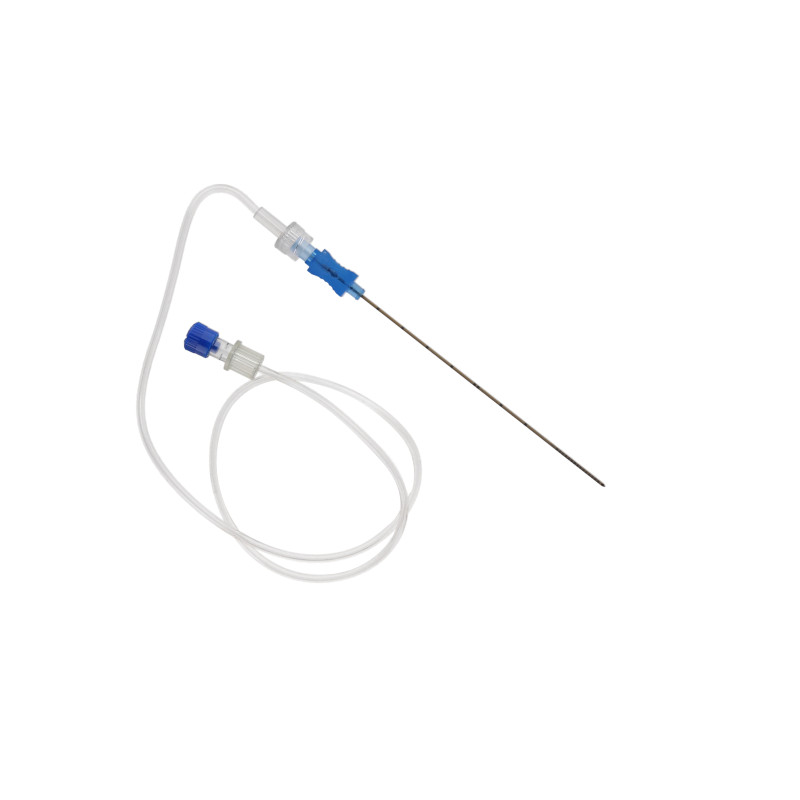

VygoPlex Echo LUER
Description
Needle for plexus and peripheral nerve blocks allowing to localize the plexus or the nerve under ECHOGRAPHY. The needle is made echogenic up… Read more
Indication
Vygoplex Echo needles are indicated for plexus and peripheral nerve blocks under ultrasound.
Description
Needle for plexus and peripheral nerve blocks allowing to localize the plexus or the nerve under ECHOGRAPHY.The needle is made echogenic up to the tip of the bevel by a sandblasting treatment and has a PTFE coating along its entire length.
The Vygoplex Echo range of needles are available with either an NRFit or a Luer connection and with a 20° or 30° bevel:
- Vygoplex Echo NRFit, 20° bevel: code AEYMNVFxxxxx
- Vygoplex Echo NRFit, 30° bevel: codes AEQMNVFxxxxx
- Vygoplex Echo Luer, 20° bevel: codes AEYMNVxxxxx
- Vygoplex Echo Luer, 30° bevel: codes AEQMNVxxxxx
Vygoplex Echo is available in 5 lengths (40, 50, 80, 100, 120 mm) and 5 gauges (20, 21, 22, 24, 25G). The millimeter mark on the first two centimeters and the centimeter mark on the rest of the needle length allow to check the inserted length at any time. A double mark indicates a 5 cm depth.
The needle also includes a 51 cm transparent removable extension to allow the injection of the anesthetic.
It has an ergonomic hub for a good grip. Its transparency allows a quick detection of any blood reflux during the aspiration test.
A device (VISE) preventing any risk of needle-stick injury is included in the packaging and can be used once the procedure is completed.
References and Features
| Needle | Packaging | |||||
|---|---|---|---|---|---|---|
| Favourites | Code | Bevel | Length mm | Gauge G | Units/Box | Units/Case |
| AEQMNV20100 | 30° | 100 | 20 | 10 | 200 | |
| AEQMNV21100 | 30° | 100 | 21 | 10 | 200 | |
| AEQMNV22050 | 30° | 50 | 22 | 10 | 200 | |
| AEQMNV22080 | 30° | 80 | 22 | 10 | 200 | |
| AEQMNV24040 | 30° | 40 | 24 | 10 | 200 | |
| AEQMNV24080 | 30° | 80 | 24 | 10 | 200 | |
| AEQMNV25050 | 30° | 50 | 25 | 10 | 200 | |
| AEQMNV25080 | 30° | 80 | 25 | 10 | 200 | |
| AEQMNV25120 | 30° | 120 | 25 | 10 | 200 | |
| AEYMNV20100 | 20° | 100 | 20 | 10 | 200 | |
| AEYMNV21100 | 20° | 100 | 21 | 10 | 200 | |
| AEYMNV22050 | 20° | 50 | 22 | 10 | 200 | |
| AEYMNV22080 | 20° | 80 | 22 | 10 | 200 | |
| AEYMNV24040 | 20° | 40 | 24 | 10 | 200 | |
| AEYMNV24080 | 20° | 80 | 24 | 10 | 200 | |
| AEYMNV25050 | 20° | 50 | 25 | 10 | 200 | |
| AEYMNV25080 | 20° | 80 | 25 | 10 | 200 | |
| AEYMNV25120 | 20° | 120 | 25 | 10 | 200 | |
Additional information
-
Contains Latex No
-
Contains animal product No
-
Pyrogen-free Yes
Documentation
-
Catalogue Pain Management
-
Brochure Vygoplex
-
Instructions for use
