Closed Safety Connectors CSSA

Qimomale

Description

Qimomale is a multi-purpose, closed, needle-free, I.V. connection device which has been designed for the preparation and safe administration of… Read more

Indication

Qimomale is a needleless, disinfectable closed I.V. system. Qimomale is a safety adaptor mounted on syringe, an infusion set or an extension tube which can only be connected onto a device featuring a Qimofemale end.

See all references

Need more information?

Send a request

Instructions for use

Product highlights

CSSA

Qimono is a Closed Safety System for Administration that prevents contamination of Nurses when infusing chemotherapy to patients

Screwless and universal device

Qimono has a unique bayonet screwless connection and offers a universal access to allow flushing patient vascular access at the end of the infusion

Chemical & Physical compatibility with cytotoxics

Qimono is chemically and physically compatible with most of the current cytotoxic drugs used for chemotherapy

Description

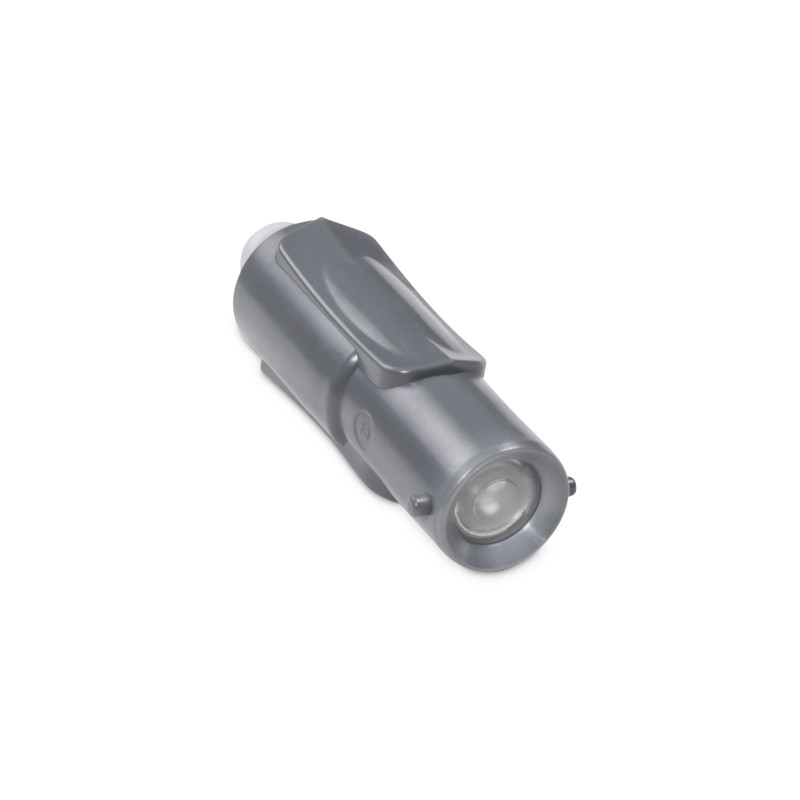

Qimomale is a multi-purpose, closed, needle-free, I.V. connection device which has been designed for the preparation and safe administration of hazardous drugs. Qimomale has a very easily disinfectable membrane (disinfection must be carried out before and after use) which automatically closes when Qimofemale is disconnected.

Qimomale is a safety adaptor, the proximal end of which must be connected onto the male Luer-lock end of a syringe, an extension tube or an infusion set.
At the distal end, the Luer bayonet end can only be connected to devices which feature a Qimofemale end.
Note: after the connection of Qimomale onto a Luer-lock male hub, Qimomale rotates and cannot be disconnected anymore.

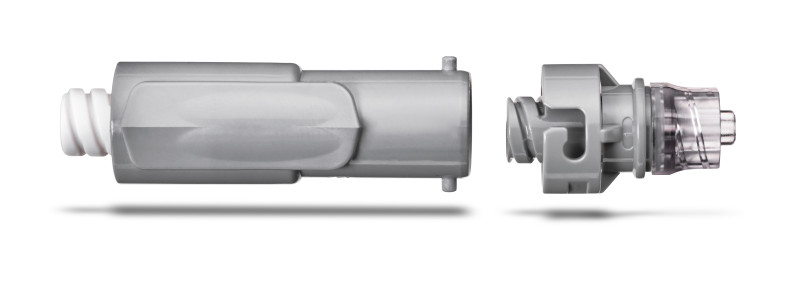

Qimomale can only be connected to the female Luer bayonet end of Qimofemale, by placing the lugs of Qimomale into the notches of the bayonet ring of Qimofemale.
During the connection, the internal metallic tube of Qimofemale opens both the membranes of Qimofemale and of Qimomale and the two conduits fit in together.
It is then possible to inject, infuse or withdraw samples of drugs.
During the disconnection, the membranes automatically close, which ensures the sealing of both devices.

Maximum number of connection: 10
Priming volume: 0.35ml

Qimo Male is lipid-resistant.
Code 7210.91: Qimomale - 1 unit in a supple blister.
Code 7210.910: Set of 25 Qimomale : - 25 units in a blister / 100 units in a box / 1 800 units in a case
