Midline Direct Seldinger
Smartmidline
Description
Seldipur Smartmidline is a single lumen peripheral catheter made of polyurethane (type: midline) for short-term peripheral venous access (up to… Read more
Indication
The Seldipur SmartMidline is intended for use in patients who require short- term IV therapy up to 30 days. It can also be used for power injections.
Product highlights
Easy insertion
Smartmidline is inserted with Direct Seldinger technique.
Easy to insert, Smartmidline allows access to small veins.
Integrated extension line
- Keeps handlings away from the insertion site.
- Improves catheter fixation.
From paediatric to adults
From 4 cm to 25 cm and 2F to 5F Smartmidline meets all users needs.
Description

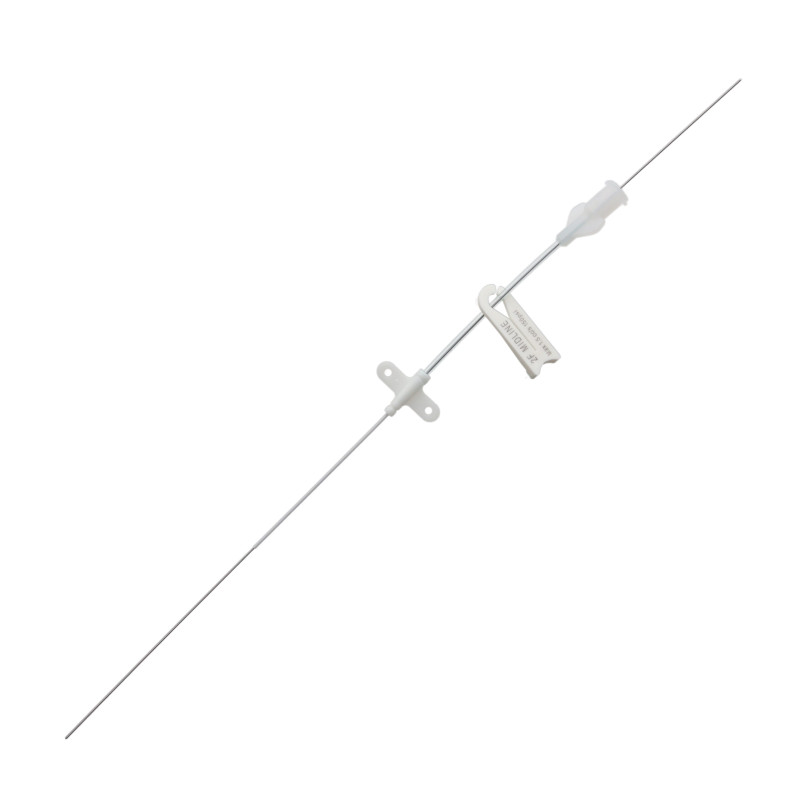

Seldipur Smartmidline is a single lumen peripheral catheter made of polyurethane (type: midline) for short-term peripheral venous access (up to 30 days). Compatible with power injections. This catheter is inserted by Seldinger technique.Seldipur Smartmidline is supplied in a peel-pouch containing:
- 1 Smartmidline polyurethane catheter with an integrated extension line and a rounded tip
- 1 puncture needle 21G - 40mm
- 1 straight stainless steel guidewire for codes 128.1204, 128.1206, 128.1208, 128.1210, 128.1215, 128.1220 - 0.018’’(0.46mm)
- OR 1 straight nitinol guidewire for codes 128.12062 and 128.12082 - 0.018’’(0.46mm)
- 1 green sticker “midline peripheral // max xml/s, max. xxx psi (xx bar)”
Seldipur Smartmidline is also available in 3Fr (see the corresponding technical file code 128.1306, 128.1308, 128.1310, 128.1312, 128.1315, 128.1320, 128.13082, 128.13102, 128.13122), in 4Fr (see the corresponding technical file code 128.1408, 128.14082, 128.1410, 128.14102, 128.14122, 128.14152, 128.14202, 128.14252, 128.1412, 128.1415, 128.1420, 128.1425) and 5Fr (see the corresponding technical file code 128.1515, 128.1520).
References and Features
| Catheter | Guidewire | Packaging | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Favourites | Code | Ext. Ø mm | Max. pressure psi | Length cm | Flow rate by gravity ml/min | Prim. vol. ml | Max. flow rate ml/s | Ø Fr | Length cm | Ø mm | Units/Box | Units/Case |
| 128.1204 | 0.75 | 150 | 4 | 15 | 0.15 | 1.5 | 2 | 23 | 0.46 | 20 | 20 | |
| 128.1206 | 0.75 | 150 | 6 | 12.5 | 0.15 | 1.5 | 2 | 23 | 0.46 | 20 | 20 | |
| 128.12062 | 0.75 | 150 | 6 | 12.5 | 0.15 | 1.5 | 2 | 29 | 0.46 | 20 | 20 | |
| 128.1208 | 0.75 | 150 | 8 | 10 | 0.15 | 1 | 2 | 26 | 0.46 | 20 | 20 | |
| 128.12082 | 0.75 | 150 | 8 | 10 | 0.15 | 1 | 2 | 29 | 0.46 | 20 | 20 | |
| 128.1210 | 0.75 | 150 | 10 | 8 | 0.15 | 1 | 2 | 26 | 0.46 | 20 | 20 | |
| 128.1215 | 0.75 | 150 | 15 | 6 | 0.15 | 0.5 | 2 | 40 | 0.46 | 20 | 20 | |
| 128.1220 | 0.75 | 150 | 20 | 4 | 0.25 | 0.5 | 2 | 50 | 0.46 | 20 | 20 | |
| 128.1306 | 1.00 | 100 | 6 | 22 | 0.2 | 1.5 | 3 | 29 | 0.53 | 20 | 20 | |
| 128.1308 | 1.00 | 100 | 8 | 20 | 0.2 | 1.5 | 3 | 29 | 0.53 | 20 | 20 | |
| 128.13082 | 1 | 100 | 8 | 20 | 0.2 | 1.5 | 3 | 29 | 0.53 | 20 | 20 | |
| 128.1310 | 1.00 | 100 | 10 | 18 | 0.2 | 1.5 | 3 | 29 | 0.53 | 20 | 20 | |
| 128.13102 | 1 | 100 | 10 | 18 | 0.2 | 1.5 | 3 | 29 | 0.53 | 20 | 20 | |
| 128.1312 | 1.00 | 100 | 12 | 16 | 0.2 | 1 | 3 | 40 | 0.53 | 20 | 20 | |
| 128.13122 | 1 | 100 | 12 | 16 | 0.2 | 1 | 3 | 40 | 0.53 | 20 | 20 | |
| 128.1315 | 1.00 | 100 | 15 | 13 | 0.25 | 1 | 3 | 40 | 0.53 | 20 | 20 | |
| 128.1320 | 1.00 | 100 | 20 | 10 | 0.3 | 1 | 3 | 50 | 0.53 | 20 | 20 | |
| 128.1408 | 1.4 | 300 | 8 | 30 | 0.4 | 5 | 4 | 40 | 0.53 | 10 | 10 | |
| 128.14082 | 1.4 | 300 | 8 | 30 | 0.4 | 5 | 4 | 40 | 0.53 | 10 | 10 | |
| 128.1410 | 1.4 | 300 | 10 | 28 | 0.4 | 5 | 4 | 40 | 0.53 | 10 | 10 | |
| 128.14102 | 1.4 | 300 | 10 | 28 | 0.4 | 5 | 4 | 40 | 0.53 | 10 | 10 | |
| 128.1412 | 1.4 | 300 | 12 | 26 | 0.45 | 5 | 4 | 40 | 0.53 | 10 | 10 | |
| 128.14122 | 1.4 | 300 | 12 | 26 | 0.45 | 5 | 4 | 40 | 0.53 | 10 | 10 | |
| 128.1415 | 1.4 | 300 | 15 | 24 | 0.45 | 5 | 4 | 50 | 0.53 | 10 | 10 | |
| 128.14152 | 1.4 | 300 | 15 | 24 | 0.45 | 5 | 4 | 50 | 0.53 | 10 | 10 | |
| 128.1420 | 1.4 | 300 | 20 | 21 | 0.5 | 5 | 4 | 50 | 0.53 | 10 | 10 | |
| 128.14202 | 1.4 | 300 | 20 | 21 | 0.5 | 5 | 4 | 50 | 0.53 | 10 | 10 | |
| 128.1425 | 1.4 | 300 | 25 | 18 | 0.55 | 5 | 4 | 60 | 0.53 | 10 | 10 | |
| 128.14252 | 1.4 | 300 | 25 | 26 | 0.55 | 5 | 4 | 60 | 0.53 | 10 | 10 | |
| 128.1515 | 1.8 | 325 | 15 | 67 | 0.5 | 7 | 5 | - | - | 10 | 10 | |
| 128.1520 | 1.8 | 325 | 20 | 56 | 0.7 | 7 | 5 | - | - | 10 | 10 | |
Additional information
-
Contains Latex No
-
Contains animal product No
-
Pyrogen-free Yes
Documentation
-
Brochure Smartmidline
-
Instructions for use
